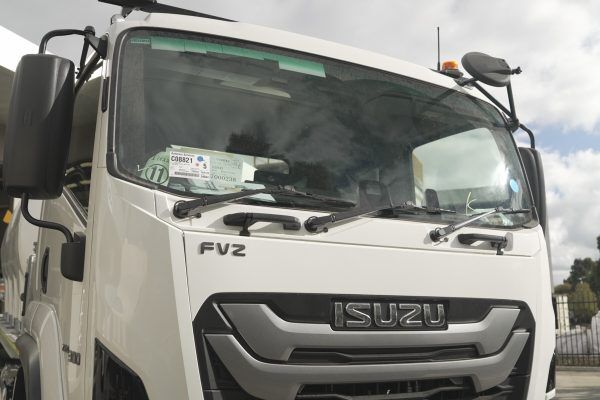

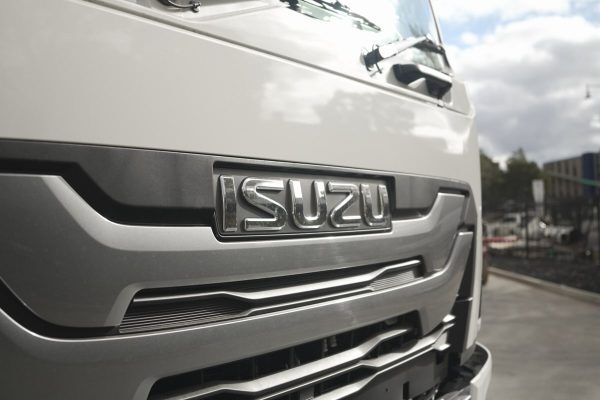

2026 Isuzu FXZ 260-355 Water Truck 13000L

Key Features

– Multiple spray functions including spray heads, batter sprays, road flusher sprays, and dribble bar

– Hydraulic-driven 4” wet-end water pump

– 25m hose reel with variable nozzle

– Suction fill, hydrant fill, and pressure outlet capability

– In-cab CANbus control unit with LED display, rotary selector, and push-button controls

– Joystick control for cannon operation

– Rear-mounted controls for pump, PTO, suction, and hose reel functions

– Integrated monitoring for water level, hydraulic oil temperature, and pump output

– Automatic pump cut-off at low water level



Spray & water delivery

– Australian-made remote control cannon with variable nozzle

– 3 × 3” valve-actuated spray heads (left & right 125mm, centre 205mm)

– Actuator-controlled batter sprays (left and right)

– Actuator-controlled front road flusher sprays (left and right)

– Valve-actuated dribble bar

– 25m 1” hose reel with variable nozzle



Hydraulics & pump system

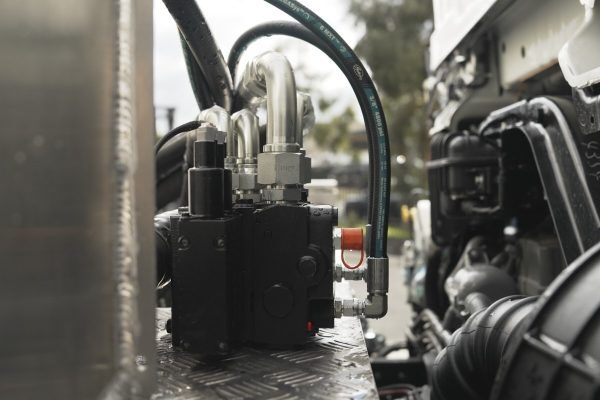

– 4” hydraulic pump with Akon directional control valves

– Hydraulic pump drive, max input speed 2100 RPM at no load

– Hydraulic-driven wet-end water pump

– 32cc clockwise Vivoil hydraulic gear motor

– Gear motor flow rating: 96 LPM

– Directional valve control for hydraulic pump operation

– Integrated hydraulic reservoir, pump, motor, and valve system for wet-end pump drive

– Suction fill through pump

– 6m suction hose with brass foot valve

– Hydrant fill point with air gap and one-way valve for overhead filling

– Pressure outlet



CANbus Control System

– In-cab CANbus control unit with LED display

– Rotary selector for system status and menu navigation

– Push-button controls for key operating functions

– Integrated sensor monitoring for water level, hydraulic oil temperature, and pump output

– Automatic pump cut-off at low water level

– Joystick control for cannon operation

– In-cab button controls for spray functions and PTO operation

– Rear-mounted control set for pump, PTO, suction, and hose reel functions

– Clearly labelled controls for straightforward operation

– Control access from both the cab and rear of the unit



Tank & structural components

– Heavy-duty SG 1.3 cartage tank, UV stabilised and food grade

– Safety baffle balls fitted

– Spring-mounted galvanised chassis frame

– Galvanised through-bolted tank mounts

– Fixed chassis mounting rails

– Rear platform for hose reel, pipework, valves, and pump system

– Brass tank fitting for tank outlet

– Integrated stainless steel suction hose storage



Safety

– Flashing rotating beacon

– Emergency E-stop

– Starter isolator

– Isolator switch

– LED side marker lights

– Number plate lamp

– Overhead work lights

– DuraLED combination tail lights, including duplicated upper set

– Side Underrun Protection System (SUPS)



Accessories

– Galvanised standpipe holder

– Lockable underbody toolbox



Optional Upgrades

– Custom brand signage and plant asset label
