Slip On Water Carts/CivMaster Premium EXM/10,000L CivMaster Premium EXM Water Cart

Back to previous page
10000LCivMaster

TRANSFORM EXISTING EQUIPMENT

A slip-on water cart for tipper trucks is a detachable module that can be easily slipped in or out of the bed of a tipper truck.

Baffle Balls

Ball Baffles help to limit fluid motion, leading to minimal liquid displacement. Additionally, they play a crucial role in reducing mechanical wear and tear by lessening the impact of liquid surges.

HASSLE FREE VERSATILITY

Designed to accommodate various tipper sizes, the CivMaster Premium offers unparalleled convenience, with all its functionalities easily accessible and controlled via a user-friendly remote.

PREMIUM CIVIL WORK SETUPS

Featuring an extensive array of equipment, with standard features: 1800lpm pump powered by hydraulic or diesel, front & rear swing up legs with front rollers, remote engine revs control, E-stop, battery Isolation, hydrant, and suction fill through the pump.

MEASUREMENT PROFILE

THE RUNDOWN

TANK SIZE

  • 10000L

LENGTH

  • 4400

FOOTPRINT WIDTH

  • 2030

MAXIMUM WIDTH

  • 2100

HEIGHT

  • 1770

BODYBUILD COMPATABILITY

STEEL TIPPER BODY All Tank Sizes Up To 13,000
ALLOY TIPPER BODY All Tanks Up To 11,000
FLATBED All Tank Sizes Up To 18,000 Within Vehicle GVM
HOOKLIFT All Tank Sizes Up To 18,000 Within Vehicle GVM
CONTAINER FRAME All Tank Sizes Up To 18,000 Within Vehicle GVM

UNDERSTANDING THE PRODUCT

Baffle balls play a crucial role in enhancing the performance and safety of water cartage tanks. These small, spherical devices are designed to float within the tank, effectively reducing the movement of liquid during transport.

Specific gravity (SG) is a measure of the density of a substance compared to the density of water. For water cartage tanks, an SG rating indicates the tank's ability to safely store and transport various liquids. Our tanks have a specific gravity of 1.3, making them suitable for carrying water, liquid fertilisers, and other chemical products. This high SG rating ensures that the tanks can handle the weight and pressure of these liquids without compromising durability or performance. However, please note that if a cartage tank is integrated into a water cart, it is designed to carry only water.

A water cartage tank is a specialized container designed for the safe and efficient transport of water. These tanks are commonly used in various industries, including agriculture, construction, and emergency services, to ensure a reliable supply of water where it's needed most. Constructed from durable materials, such as non-recycled virgin polyethylene, these tanks are built to withstand harsh conditions and prevent contamination. Water cartage tanks often feature baffle balls to minimise liquid movement during transport, enhancing stability and safety. They can be integrated into larger systems, such as spray units for dust suppression, making them versatile tools for a wide range of applications.
CivMaster Premium EXM, Slip On Water Carts

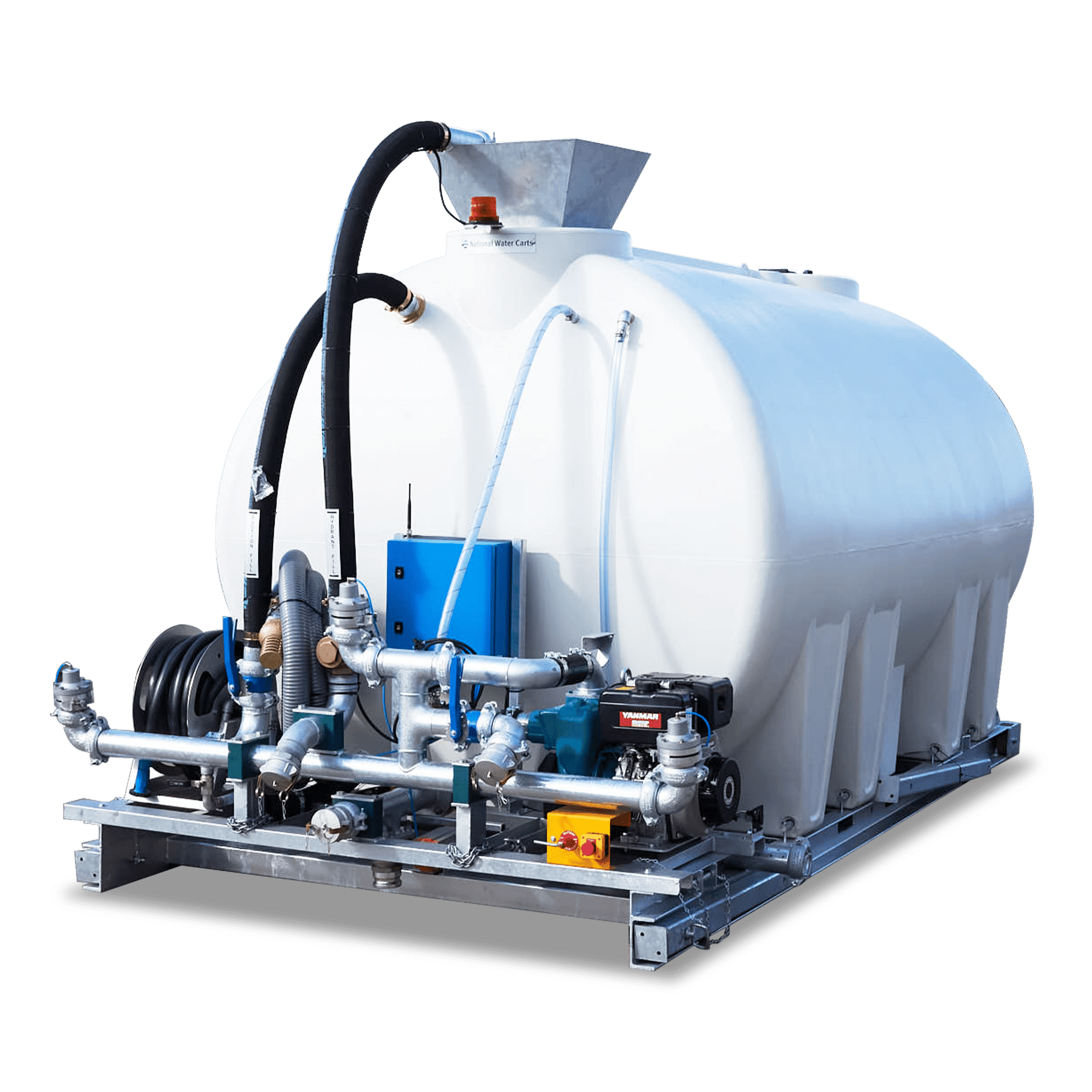

10,000L CivMaster Premium EXM Water Cart

CivMaster Premium Water Carts , Featuring the most comprehensive equipment inclusions , standard unit includes Yanmar Diesel engine, Front & Rear Swing up legs with front rollers, Remote engine revs control, E Stop, Battery Isolation, Hydrant, and suction fill through the pump. We have a size to fit all tippers.

INCLUSIONS

  • Heavy Duty S.G 1.3 Cartage Tank (20 Year Warranty)
  • UV Stabilised / Food Grade
  • Safety Baffle Balls Fitted
  • Forkable Gal Frame With Welded On Lifting Eyelets
  • Loading Leg System With Swing Up Legs And Front Rollers
  • Yanmar L100E 10.0Hp Electric Start Diesel Engine
  • 3’’ High Pressure High Performance Tanker Pump
  • 3 x 3’’ Air To Open Adjustable Sprays
  • 2 x Actuator controlled Side Sprays
  • Australian Made Electric Water Cannon With Remote Control Direction And Flow Control, Fitted With Cannon Tower
  • Pressure Relief Valve
  • 30 Metre 1’’ Hose Reel With Nozzle
  • Overhead Fill
  • Hydrant Fill Point With Air Gap And One Way Valve
  • Suction Fill Back through Pump 6m Hose And Foot Valve
  • Beacon
  • No Wires In Cab, Industrial Remote Control
  • Individual Buttons For Each Spray And Beacon
  • Remote Engine Speed Control, Revs Up Revs Down
  • Dribble Bar Including Actuator, Flange, Pipework And Fittings, Solenoid For Remote Control Operation
  • E Stop, And Lockable Battery Isolation

OPTIONS

  • Chassis Frame for Truck Module OR Twist Lock Container Frame Also Available
  • Pressure Bar
  • Pressure Bar As Above, With 10 x 1/2’’ High Pressure Nozzles
  • Additional Spray Heads
  • Choose Frame Type
  • SKU:CIV-P-X-10
