13000LHydraulic Water Cart

TRANSFORM EXISTING EQUIPMENT

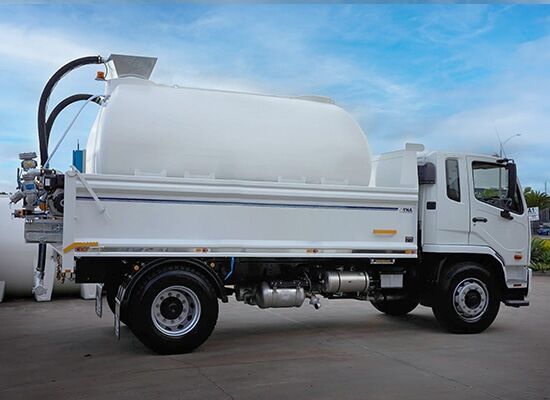

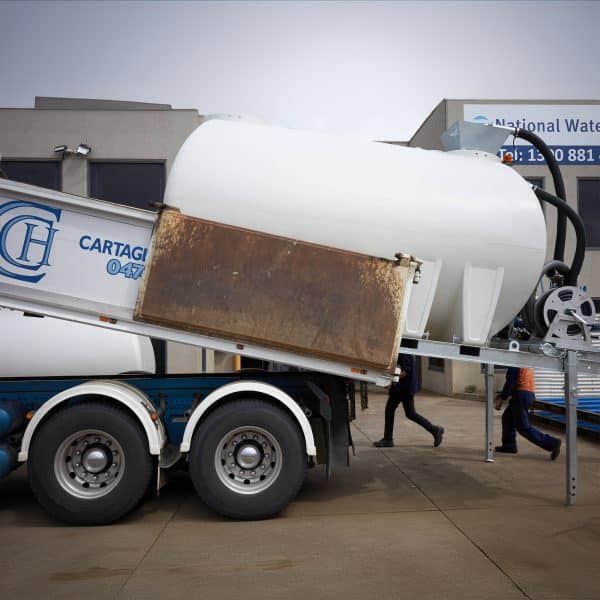

A slip-on water cart for tipper trucks is a detachable module that can be easily slipped in or out of the bed of a tipper truck.

Baffle Balls

Ball Baffles help to limit fluid motion, leading to minimal liquid displacement. Additionally, they play a crucial role in reducing mechanical wear and tear by lessening the impact of liquid surges.

HASSLE FREE VERSATILITY

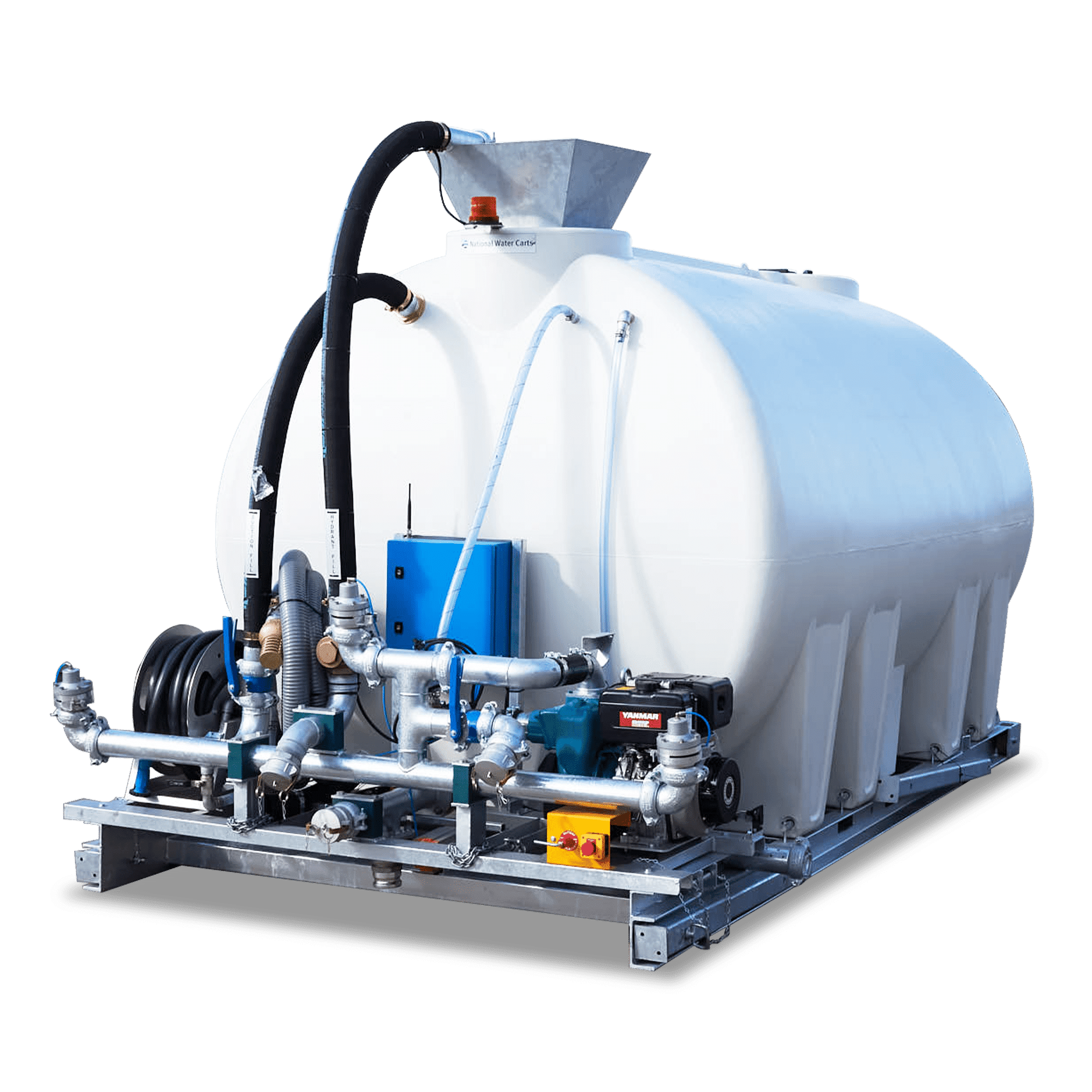

Designed to accommodate various tipper sizes, the CivMaster Premium offers unparalleled convenience, with all its functionalities easily accessible and controlled via a user-friendly remote.

PREMIUM CIVIL WORK SETUPS

Featuring an extensive array of equipment, with standard features: 1800lpm pump powered by hydraulic or diesel, front & rear swing up legs with front rollers, remote engine revs control, E-stop, battery Isolation, hydrant, and suction fill through the pump.

MEASUREMENT PROFILE

THE RUNDOWN

TANK SIZE

  • 13000L

LENGTH

  • 4400

FOOTPRINT WIDTH

  • 2030

MAXIMUM WIDTH

  • 2230

HEIGHT

  • 2170

BODYBUILD COMPATABILITY

STEEL TIPPER BODY All Tank Sizes Up To 13,000
ALLOY TIPPER BODY All Tanks Up To 11,000
FLATBED All Tank Sizes Up To 18,000 Within Vehicle GVM
HOOKLIFT All Tank Sizes Up To 18,000 Within Vehicle GVM
CONTAINER FRAME All Tank Sizes Up To 18,000 Within Vehicle GVM

UNDERSTANDING THE PRODUCT

Baffle balls play a crucial role in enhancing the performance and safety of water cartage tanks. These small, spherical devices are designed to float within the tank, effectively reducing the movement of liquid during transport.

Specific gravity (SG) is a measure of the density of a substance compared to the density of water. For water cartage tanks, an SG rating indicates the tank's ability to safely store and transport various liquids. Our tanks have a specific gravity of 1.3, making them suitable for carrying water, liquid fertilisers, and other chemical products. This high SG rating ensures that the tanks can handle the weight and pressure of these liquids without compromising durability or performance. However, please note that if a cartage tank is integrated into a water cart, it is designed to carry only water.

A water cartage tank is a specialized container designed for the safe and efficient transport of water. These tanks are commonly used in various industries, including agriculture, construction, and emergency services, to ensure a reliable supply of water where it's needed most. Constructed from durable materials, such as non-recycled virgin polyethylene, these tanks are built to withstand harsh conditions and prevent contamination. Water cartage tanks often feature baffle balls to minimise liquid movement during transport, enhancing stability and safety. They can be integrated into larger systems, such as spray units for dust suppression, making them versatile tools for a wide range of applications.
CivMaster Premium Hydraulic, Slip On Water Carts

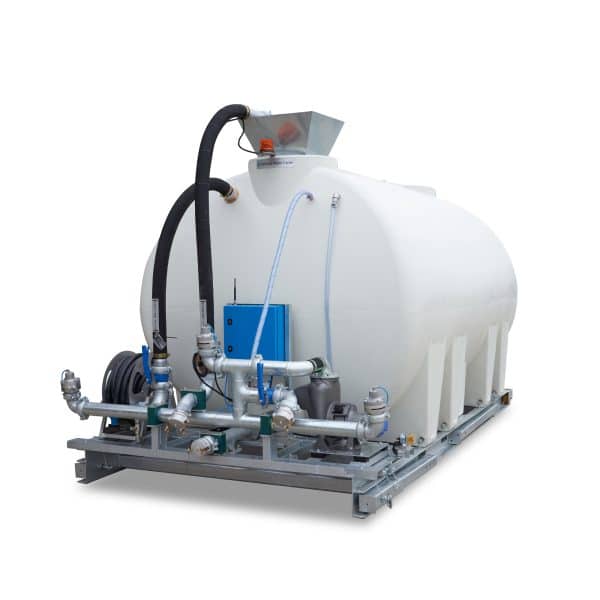

13000L Civmaster Premium Hydraulic Water Cart

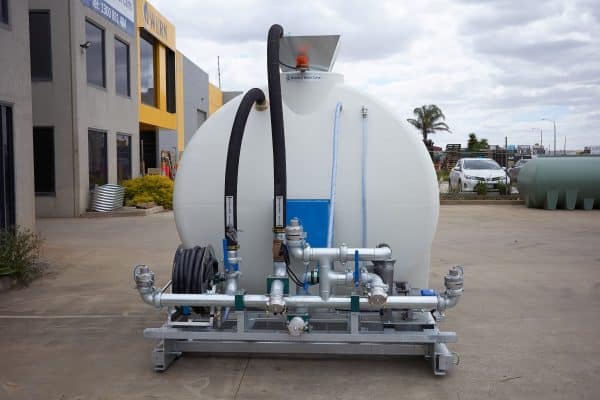

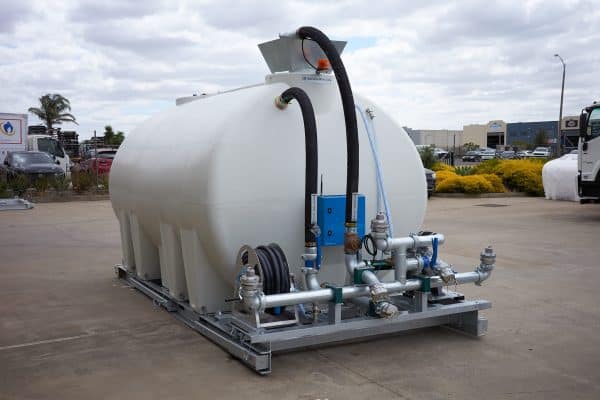

The CivMaster Premium Hydraulic offers all the capability of the CivMaster Premium, with the added efficiency of hydraulic integration.

This variant replaces the diesel engine with a tanker pump close-coupled to a hydraulic motor, enabling simple plug-and-play connectivity to your truck’s PTO system. All other standard inclusions remain – including the 2000LPM high-capacity tanker pump, remote engine rev control, emergency E-Stop, battery isolation, hydrant fill, and suction fill through the pump.

The Premium Hydraulic is available in a range of sizes to suit all tipper dimensions, with flexible sub-frame configurations – including swing-up leg frames, skid-only frames, and twist-lock container frames – to suit a variety of fleet setups.

Inclusions list

Tank & structural components
• Heavy duty S.G 1.3 cartage tank (UV stabilised / food grade, 20-year warranty)
• Forkable gal frame with welded-on lifting eyelets
• Safety baffle balls fitted
• Loading leg system with swing-up legs and front rollers (standard option)

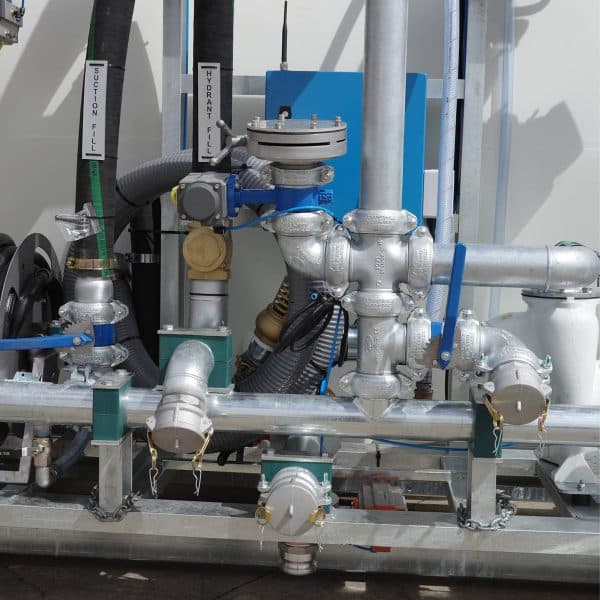

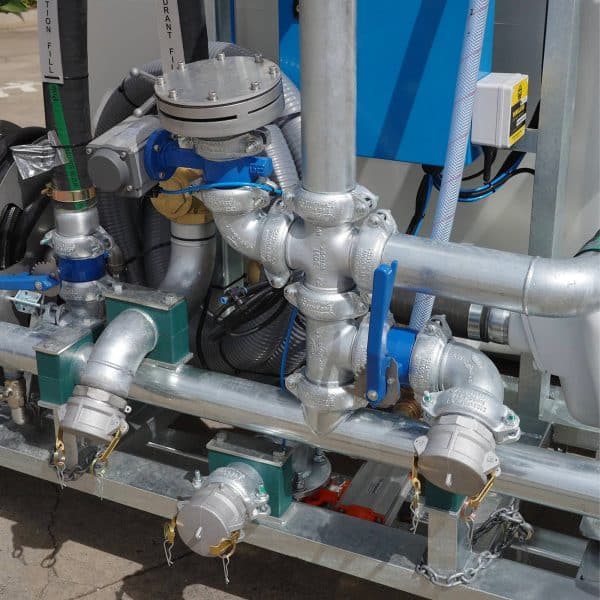

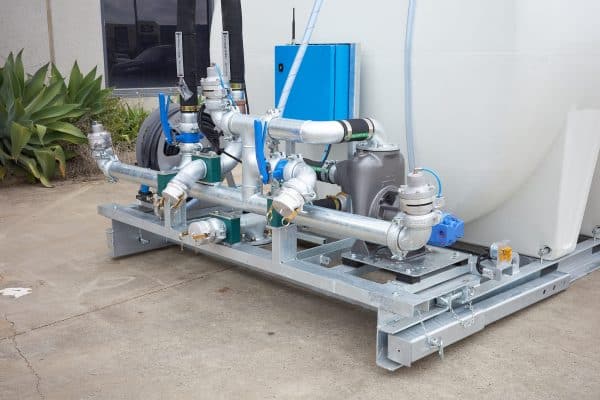

Pump & flow system

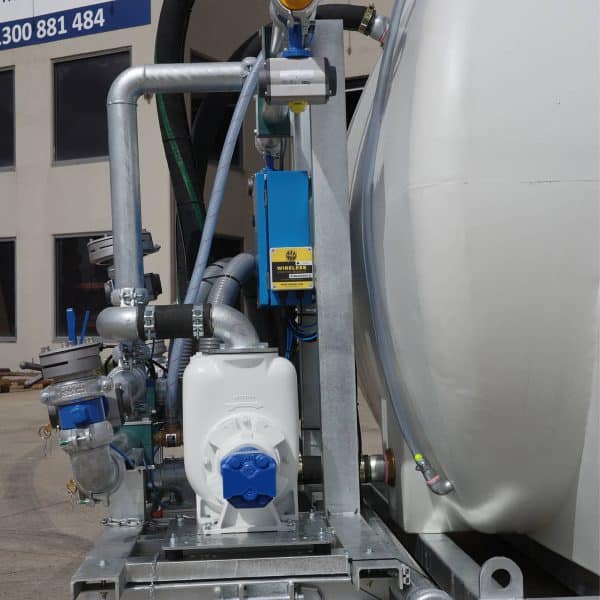

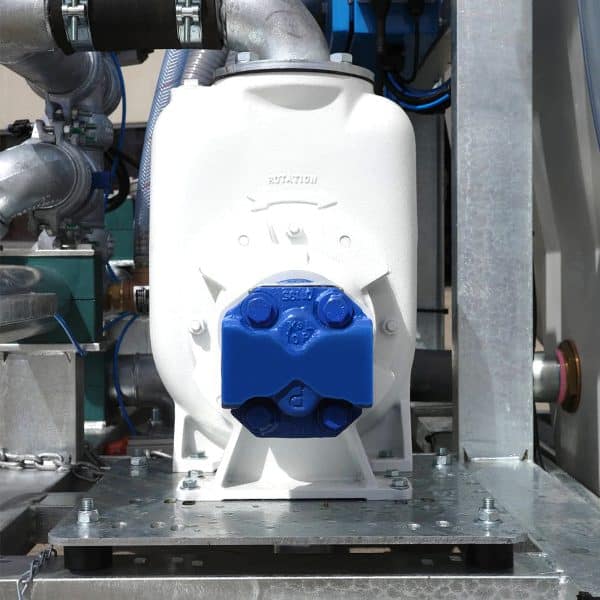

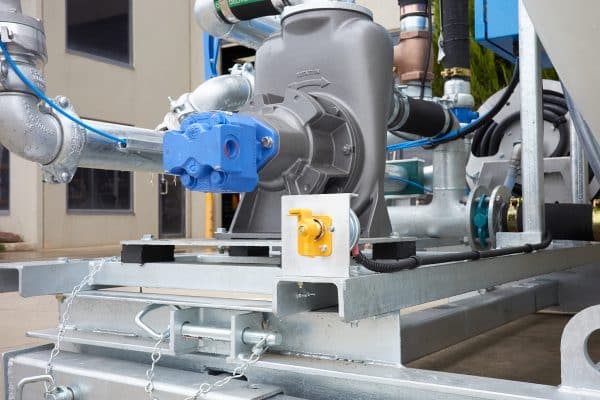

• Self-priming 3” hydraulic tanker pump c/c 20cc hydraulic motor
• Max flow 2000 LPM, max pressure 82 PSI
• Pressure relief valve

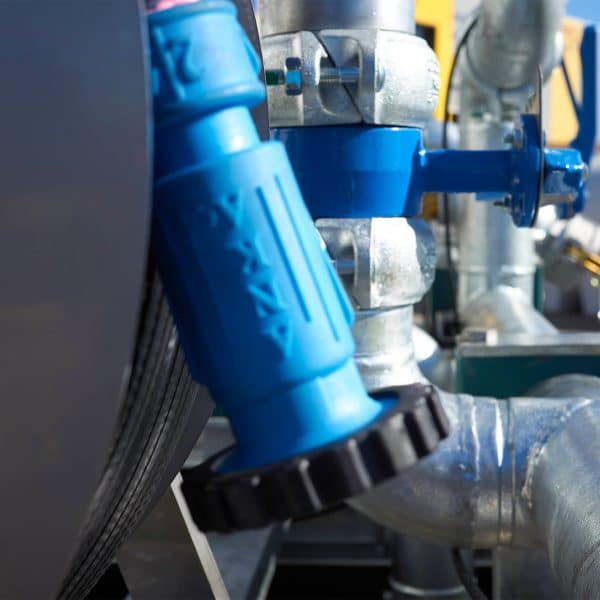

• Suction fill back through pump, 6m hose and foot valve
• Hydrant fill point with air gap and one-way valve
• Overhead fill

Spray & water delivery

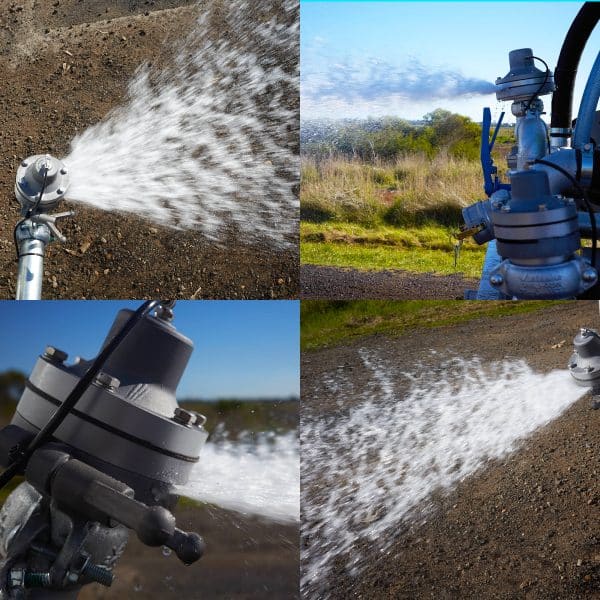

• 3 x 3” air-operated sprays
• Dribble bar including actuator, flange, pipework and fittings, solenoid for remote control operation
• 30 metre 1” hose reel with nozzle

Control & electronics
• Accessible control box, with power connection for electric/air solenoids
• No wires in cab, industrial remote control
• Individual buttons for each spray, dribble bar, and beacon

Safety & support features
• Beacon

Options list

• Pressure bar with nozzles – includes 10 x ½” high-pressure nozzles
• Additional spray heads
• Aus-made electric water cannon – remote-controlled direction and flow, fitted with cannon tower
• Twist-lock container frame and skid-only frame available as frame options

  • Choose Frame Type
  • SKU:CIV-P-H-13
